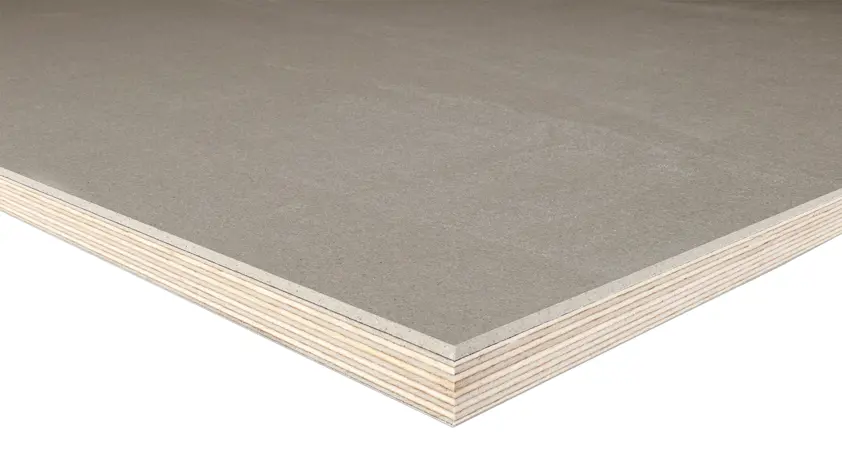

WISA-Form Elephant, birch plywood with wood plastic composite coating, is designed for concrete shuttering where stringent requirements are set on the number of reuses. The hardwearing coating brings extra value especially in frame systems and in rental use, where the extensive service life enables prolonged panel change intervals.
WISA-Form Elephant
Properties
- Excellent strength/weight ratio
- Resistant to wear and tear
- Good striking properties
- Possibility to customise according to your needs
End-uses
- Vertical formwork
- Special formwork
- Frame formwork systems
Bonding
Phenolic resin cross-bonded weather resistant glueing according to EN 314-2/class 3.
Surface and edges
Face: 1,6 mm light grey special plastic coating.
Reverse: Dark brown phenolic film 220 g/m2 moisture barrier.
Optional: Special plastic coating on both sides.
Edge sealing: Water resistant paint.
Panel size
Maximum size: 1525 x 3660 mm. Sizes at customer’s reques
Thickness
| Nominal thickness (mm) |
Number of plies | Thickness (mm) | Weight (kg/m2) (MC 10%) |
|---|---|---|---|
| min. - max. | |||
| 18 | 12 | 17.1 - 18.1 | 13.7 |
| 21 | 14 | 19.0 - 20.9 | 15.6 |
