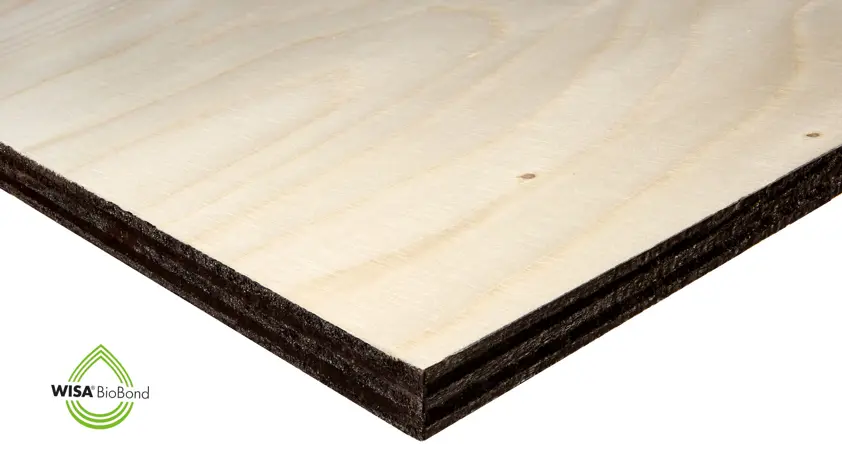

WISA-Oil is a pre-oiled and edge sealed concrete forming panel made of spruce. It is a simple and economical panel which is most suited for wall and floor castings with low visual requirements, especially for dead mold castings.
WISA-Oil
Properties
- Lightweight
End-uses
- Horizontal castings
- Vertical castings
Bonding
Weather resistant glueing according to EN 314-2/class 3.
Surface and edges
Face and reverse: Oil treated with a release agent. Surface quality II/III.
Panel size
2440 x 1200 mm
2400 x 1200 mm
2500 x 1250 mm
Other sizes on special request.
Thicknesses and weights
| Nominal thickness | Number of plies | Min. thickness (mm) | Weight (kg/m2) abt. |
|---|---|---|---|
| min. - max. | |||
| 18 | 7 | 17.1 - 18.1 | 8.3 |
| 21 | 7 | 20.0 - 20.9 | 9.7 |
