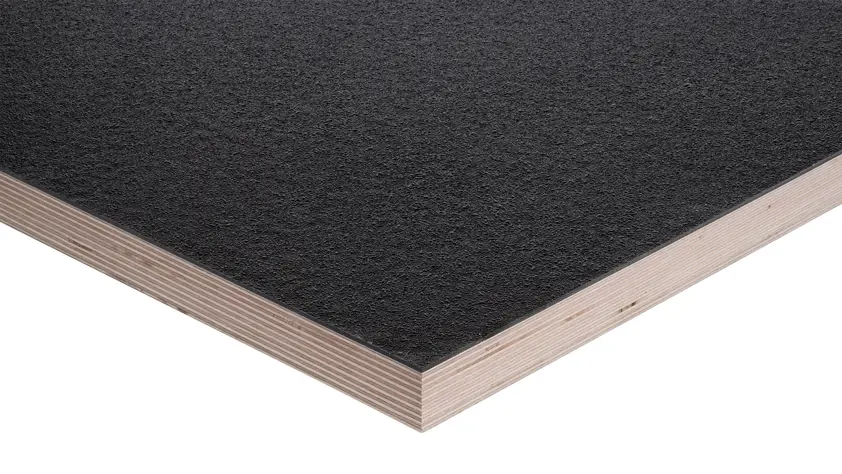

WISA-TopGrip is a solid birch plywood panel with high-friction coating, enabling safe and efficient loading for trailers. The 2nd generation WISA-TopGrip panels are manufactured in an automated process, which guarantees constant product properties and quality. The friction properties have improved by 25% in comparison to the 1st generation WISA-TopGrip, and regular, even coating thickness ensures that the trailer floor is smooth and consistent. WISA-TopGrip eliminates the need of separate, disposable friction mats *; high friction flooring is more sustainable for the environment and it saves money.
WISA-TopGrip
Properties
- Flooring panel with high-friction coating
- Wear resistant
- Strong and durable
End-uses
- Vehicle flooring
- Flooring applications where high-friction property is essential
Bonding
Weather resistant glueing according to EN 314-2/class 3 exterior, EN 636-3.
Surface and edges
Surface: 2 mm high-friction black PU based coating
Reverse: Dark brown phenolic film as a moisture barrier
Edge protection: Aceryl-based paint
Panel size
1220 x 2440 mm
1250 x 2500 mm
1500 x 2500 mm
1525 x 3050 mm
The largest size 1525 x 3600 mm
Other sizes on request.
Size tolerances
< 1000 mm ±1 mm
1000 - 2000 mm ±2 mm
> 2000 mm ±3 mm
Squareness tolerance
±1 mm/1000 mm
Thicknesses and weights
| Nominal thickness (mm) |
Number of plies | Thickness (mm) | Weight (kg/m2) |
|---|---|---|---|
| min. - max. | |||
| 9 | 7 | 10.6 - 11.7 | 8.1 |
| 12 | 9 | 13.3 - 14.7 | 10.2 |
| 15 | 11 | 16.1 - 17.5 | 12.2 |
| 18 | 13 | 18.9 - 20.3 | 14.2 |
| 21 | 15 | 21.8 - 23.1 | 16.3 |
| 24 | 17 | 24.7 -25.9 | 18.3 |
| 27 | 19 | 27.0 - 29.0 | 20.4 |
| 28 | 20 | 28.7 - 30.1 | 21.3 |
| 30 | 21 | 29.9 - 32.1 | 22.4 |
| 31 | 22 | 31.4 - 33.1 | 23.1 |
Moisture content 8 - 12%.
*) Use of high-friction flooring/friction mats does not eliminate the need to secure the cargo properly. National requirements should always be followed.
