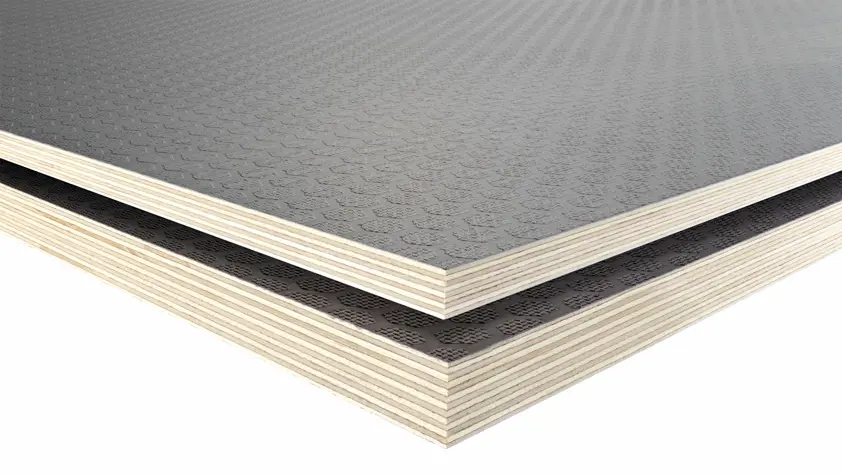

WISA-Hexa is a plywood panel coated with brown or grey film and imprinted with a hexagonal pattern. It is intended for use as flooring in the transport industry, i.e. delivery vans and horseboxes and building applications such as warehouses and stage platforms. WISA-Hexa is the best choice when slip resistant and decorative flooring is needed.
WISA-Hexa
Properties
- Decorative flooring panel
- Wear resistant
- Slip resistant
End-uses
- Vans
- Trailers
- Horseboxes
- Scaffolding
- Loading platforms
- Stages, stands, terraces
- Sports and playground facilities
Bonding
Phenolic resin cross-bonded weather resistant gluing according to EN 314-2/class 3.
Surface and edges
Face: Brown phenolic resin film with a 10 mm diameter hexagonal pattern.
Grey UV-resistant coating with a 10 mm hexagonal pattern.
Reverse: Smooth phenolic moisture barrier with imprinted text “WISA Special Plywoods”.
Other reverse side coatings available upon request.
Edge protection: Acryl-based paint.
Panel size
Standard dimensions:
1000 x 2500/3000 mm
1220 x 2440 mm
1250 x 2500 mm
1525 x 2500/3050 mm
The largest standard size 1525 x 3660 mm
Maxi panels:
1800 x 3000 mm
2000 x 3000 mm
The largest scarf-jointed size 4000 x 2000 mm
Size tolerances:
< 1000 mm ±1 mm
1000 - 2000 mm ±2 mm
2000 - 4000 mm ±3 mm
Squareness tolerance:
±1 mm / 1000 mm
Thicknesses and weights
| Nominal thickness (mm) |
Number of plies | Thickness (mm) | Weight (kg/m2) | Maxi panels thickness (mm) |
|---|---|---|---|---|
| min. - max. | min. - max. | |||
| 9 | 7 | 8.8 - 9.5 | 6.5 | 8.3 - 9.0 |
| 12 | 9 | 11-5 - 12.5 | 8.5 | 11.0 - 12.0 |
| 15 | 11 | 14.3 - 15.3 | 10.5 | 13.8 - 14.8 |
| 18 | 13 | 17.1 - 18.1 | 12.3 | 16.6 - 17.6 |
| 21 | 15 | 20.0 - 20.9 | 14.6 | 19.5 - 20.4 |
| 24 | 17 | 22.9 - 23.7 | 16.6 | 22.3 - 23.3 |
| 27 | 19 | 25.2 - 26.8 | 18.4 | 24.7 - 26.3 |
| 30 | 21 | 28.1 - 29.9 | 20.7 | 27.6 - 29.4 |
Moisture content 8-10 %
