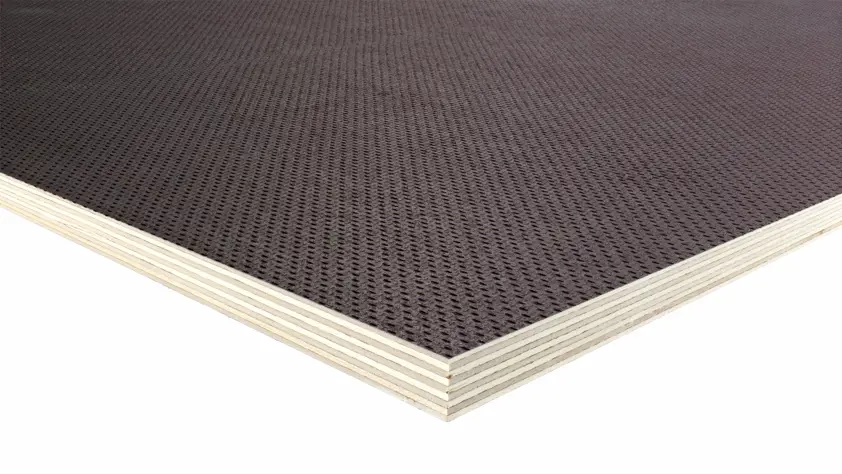

WISA-Wire is a plywood panel coated with dark brown phenolic resin coating with a slip resistant wire mesh pattern. The product is intended for use as flooring in the transport industry i.e. in trailers, horse boxes and railway wagons and building applications such as warehouses, loading platforms and scaffolding. WISA-Wire is a universal material for technical flooring applications.
WISA-Wire
Properties
- Universal flooring panel
- Wear resistant
- Slip resistant
End-uses
- Trailers
- Railway wagons
- Warehouses
- Loading platforms
- Scaffolding
- Horse boxes
Bonding
Phenolic resin cross-bonded weather resistant gluing according to EN 314-2/class 3.
Surface and edges
Face: Phenolic resin coating with wire mesh pattern, dark brown.
Reverse: Phenolic moisture barrier. Available either smooth or imprinted.
Edge protection: Acryl-based paint
Coating Weight: 120 g or 220 g/m2
Panel size
Standard dimensions:
1000 x 2500/3000 mm
1200 x 2400 mm
1220 x 2440 mm
1250 x 2500 mm
1500 x 3000 mm
1525 x 3050 mm
The largest standard size 1525 x 3660 mm
Maxi panels:
1800 x 3000 mm
2000 x 3000 mm
The largest scarf-jointed size 12300 x 2700 mm
Size tolerances:
< 1000 mm ±1 mm
1000 - 2000 mm ±2 mm
2000 - 6000 mm ±3 mm
> 6000 mm ±5 mm
Squareness tolerance:
±1 mm / 1000 mm
Thicknesses and weights
Birch throughout construction
| Nominal thickness (mm) | Number of plies | Thickness (mm) | Weight (kg/m2) | Maxi panels thickness (abt mm) |
|---|---|---|---|---|
| min. - max | min. - max. | |||
| 9 | 7 | 8.8 - 9.5 | 6.1 | 8.3 - 9.1 |
| 12 | 9 | 11.5 - 12.5 | 8.2 | 11.0 - 12.0 |
| 15 | 11 | 14.3 - 15.3 | 10.2 | 13.8 -14.8 |
| 18 | 13 | 17.1 - 18.1 | 12.2 | 16.6 - 17.6 |
| 21 | 15 | 20.0 - 20.9 | 14.3 | 19.5 - 20.5 |
| 24 | 17 | 22.9 - 23.7 | 16.3 | 22.3 - 23.3 |
| 27 | 19 | 25.2 - 26.8 | 18.4 | 24.7 -26.3 |
| 28 | 20 | 26.6 - 27.9 | 19.4 | |
| 30 | 21 | 28.1 - 29.9 | 20.4 | |
| 31 | 22 | 29.6 - 31.2 | 21.5 | |
| 35 | 25 | 34.4 - 35.6 | 23.8 | |
Moisture content 8-12 %.
