WISA-Form Birch is a household name in the formworking industry, a universal casting panel that can be used in numerous different applications from frame systems to special formwork projects. The full birch base panel combined with phenolic coating is especially designed for the formwork end use and has an excellent strength to weight ratio and stable striking properties. Strong standard construction can be optimised further by using strength oriented construction when needed.

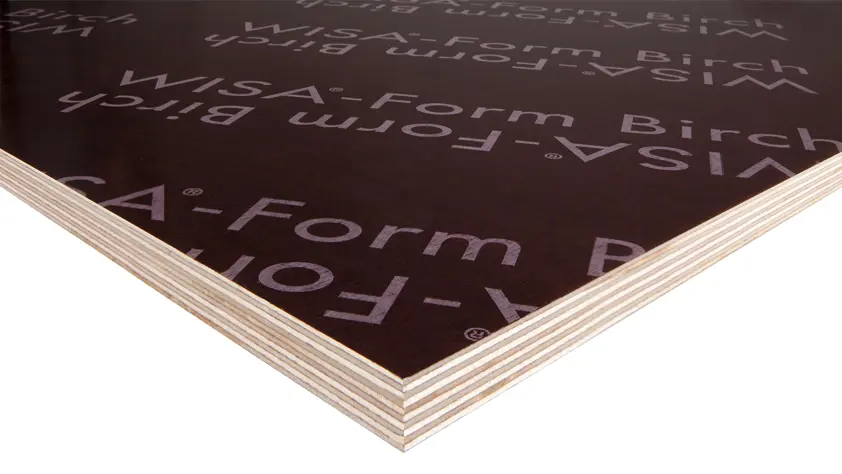

WISA-Form Birch
Properties
- Excellent strength/weight ratio
- Sound face for smooth surface
- Good striking properties
- Possibility to customise according to your needs
End-uses
- Horizontal formwork
- Vertical formwork
- Special formwork
- Frame formwork systems
Bonding
Phenolic resin cross-bonded weather resistant glueing according to EN 314-2/class 3.
Surface and edges
Face and reverse: Dark brown phenolic film 120 g/m2 or 220 g/m2.
Edge sealing: Water resistant paint.
Panel size
Standard panel sizes:
1200/1220/1250/1500/1525 x 2400/2440/2500/2700/3000/3050/3600/3660 mm
Cut sizes at customer's request
Size tolerance (length/width) ±1mm per metre
Squareness tolerance ±1mm per metre length of diagonal
Constructions and thicknesses
| Nominal thickness (mm) |
Number of plies | WISA-Form standard sizes (mm) |
|---|---|---|
| min. - max. | ||
| 6.5 | 5 | 6.1 − 6.9 |
| 9 | 7 | 8.8 − 9.5 |
| 12 | 9 | 11.5 − 12.5 |
| 15 | 11 | 14.3 − 15.3 |
| 18 | 13 | 17.1 − 18.1 |
| 21 | 15 | 20.0 − 20.9 |
| 24 | 17 | 22.9 − 23.7 |
| 27 | 19 | 25.2 − 26.8 |
| 30 | 21 | 28.1 − 29.9 |
| > 30 | ± 3% |
