WISA-Multifloor

WISA-Multifloor

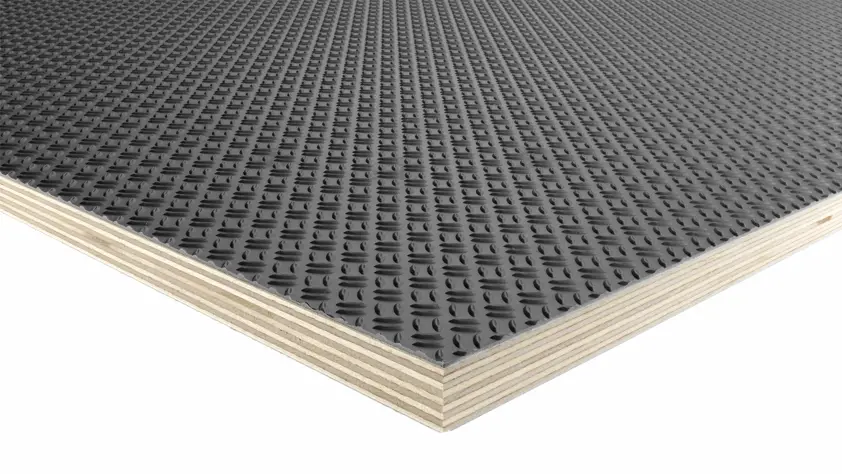

WISA-Multifloor is a high quality plastic coated flooring panel for end uses where visual appearance and durability are required i.e. delivery vans, stages, spectator stands and sports hall applications. WISA-Multifloor is an ideal flooring material for the varied needs of the transport and construction industries.

Properties

  • Decorative plastic coated flooring panel
  • Wear resistant
  • Slip resistant surface

End-uses

  • Van floorings
  • Other vehicle floors
  • Terrace floors
  • Sports halls
  • Exterior and interior uses


Bonding

Phenolic resin cross-bonded weather resistant gluing according to EN 314-2 / class 3.
Gluing of coating EN 204 class D4.

Surface and edges

Weight: 800 g/m2
Pattern: ripple
Colour: grey RAL 7010.
Reverse side: moisture barrier coating.

Panel size

1200/1220/1250/1500/1525 x 2400/2440/2500/3000/3050 mm
Other sizes upon request.

Thicknesses and weights

Please note that nominal thickness refers to the core plywood and the actual thickness refers
to the finished coated panel.

​Nominal thickness (mm) ​Number of plies Actual thickness (mm) Thickness (mm) Weight (kg/m2)
      min. - max.
6.5 5 7.8 7.3 - 8.3 5.3
9 7 10.4 10.0 -10.9 7.1
12 9 13.3 12.7 - 13.9 9.0
15 11 ​16.1 15.5 - 16.7 10.9
18 13 ​18.9 18.3 - 19.5 12.8
21 15 21.7 21.2 - 22.3 14.8
24 17 24.6 ​24.1 - 25.1 16.7
27 19 ​27.3 26.4 - 28.8 18.5
30 ​21 ​30.3 ​29.3 - 31.3 ​20.6
