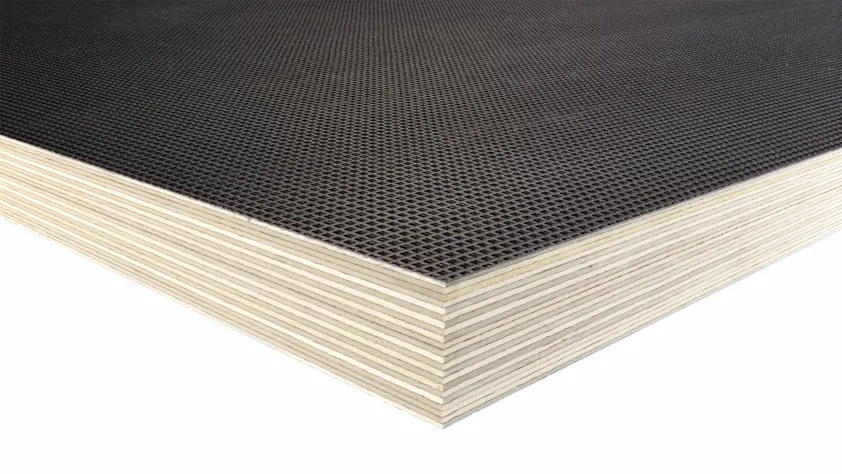

WISA-Trans Mk2 is a slip-resistant plywood panel for demanding flooring applications in transport and construction. The panel is made of birch veneers glued together in special-oriented or cross-banded constructions. The product is intended for use as flooring in trucks, trailers and railway wagons but also for demanding building applications such as warehouse floors and loading platforms. The uniquely patterned coating is especially wear-resistant, which helps prolong the service life of the flooring.
WISA-Trans Mk2
Properties
- Multilayer laminated flooring panel
- Improved wear resistance
- Slip resistant surface
End-uses
- Trailers
- Railway wagons
- Warehouses
- Loading platforms
Bonding
Phenolic resin cross-bonded weather resistant gluing according to EN 314-2/class 3.
Surface and edges
Face: Brown phenolic resin impregnated multi-layer laminate with high-friction pattern
Reverse: Phenolic resin coating with WISA-Trans imprinit
Edge protection: Acryl-based paint
Panel size
Standard dimensions:
1200/1220/1250/1500/1525 x 2400/2440/2500/3000/3050 mm
The largest standard size 1525 x 3660 mm
Size tolerances:
< 1000 mm ±1 mm
1000-2000 mm ±2 mm
2000-3660 mm ±3 mm
Squareness tolerance:
±1 mm / 1000 mm
Thicknesses and weights
| Nominal thickness (mm) | Number of plies | Thickness (mm) | Weight (kg/m2) |
|---|---|---|---|
| min. - max. | |||
| 18 | 13 | 17.1 - 18.1 | 12.2 |
| 21 | 15 | 20.0 - 20.9 | 14.3 |
| 22 | 16 | 21.3 - 22.3 | 15.3 |
| 24 | 17 | 22.9 - 23.7 | 16.3 |
| 25 | 18 | 24.1 - 25.1 | 17.4 |
| 27 | 19 | 25.2 - 26.8 | 18.4 |
| 28 | 20 | 26.9 - 27.9 | 19.4 |
| 30 | 21 | 28.1 - 29.9 | 20.4 |
| 31 | 22 | 29.6 - 31.2 | 21.5 |
Moisture content 8-12 %.
