WISA-Form Maxi Birch is the perfect choice when producing large seamless concrete surfaces. The product combines the key features of WISA-Form Birch with the extensive maxi size range making the panel a natural choice when designing special projects. A maxi sized panel can also be a time saving factor both in frame system manufacturing and in special custom build forms.

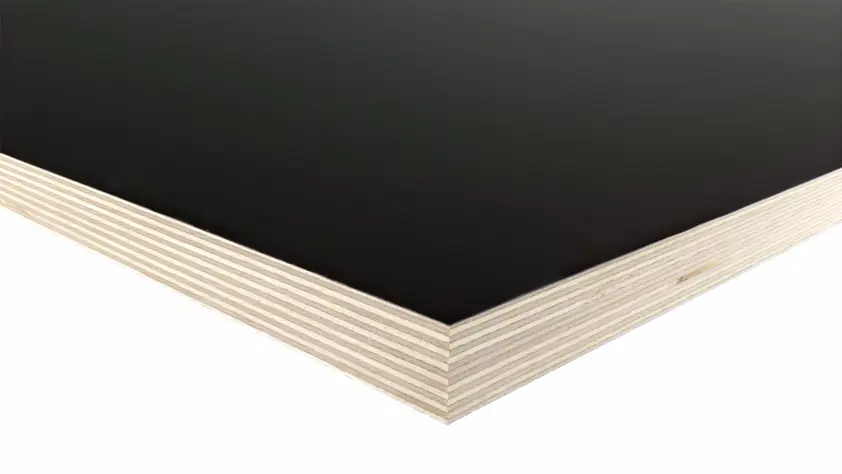

WISA-Form Maxi Birch
Properties
- Excellent strength/weight ratio
- Sound face for smooth surface
- Good striking properties
- Wide size range up to 12300 x 2700 mm
- Possibility to customise according to your needs
End-uses
- Vertical formwork
- Special formwork
- Frame formwork systems
Bonding
Weather resistant gluing according to EN 314-2/class 3.
Surface and edges
WISA-Form Maxi Birch has a coating weight for both sides is approx. 220 g/m2.
WISA-Form Super Maxi Birch has a coating weight for face 540 g/m2 and
reverse side 220 g/m2.
Face and reverse: Dark brown phenolic film.
Edge protection: Water resistant paint.
Only the top side can be used for concrete shuttering.
Panel sizes
Maxi panel sizes are 2000 –12300 x 2000 – 2700 mm
Thickness and weight
| Nominal thickness (mm) | Number of plies | Thickness (mm) | Weight (kg/m2) (MC 10%) |
|---|---|---|---|
| min - max | |||
| 9 | 7 | 8.3 - 9.1 | 6 |
| 12 | 9 | 11.0 - 12.0 | 8 |
| 15 | 11 | 13.8 - 14.8 | 10 |
| 18 | 13 | 16.6 - 17.6 | 12 |
| 21 | 15 | 19.5 - 20.5 | 14 |
| 24 | 17 | 22.3 - 23.3 | 16 |
Moisture content: 10 ±2 %
