WISA-Form MDO

WISA-Form MDO

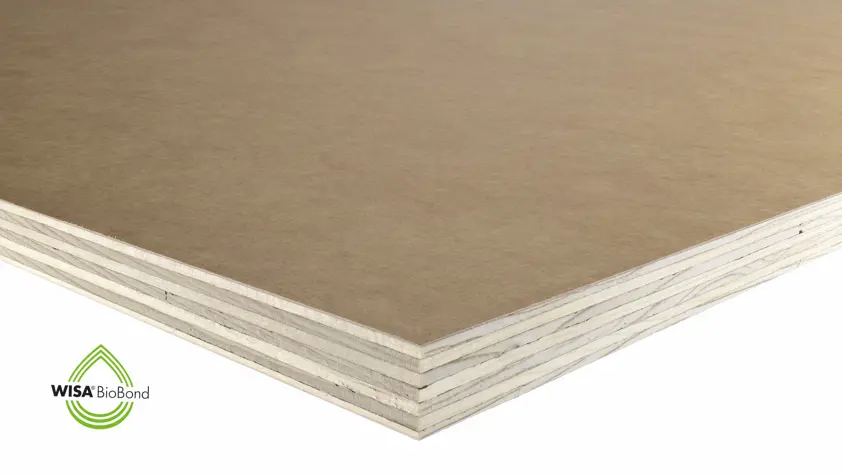

WISA-Form MDO is a spruce based product for various formwork applications. The light weight of the panel makes it easy to handle and medium density overlay on the face gives a constant matt finish to the concrete surface.

Properties

  • Light weight
  • Smooth matt finish
  • Good striking properties

End-uses

  • Horizontal formwork
  • Vertical formwork
  • Special formwork


Bonding

Weather resistant glueing according to EN 314-2/class 3.

Surface and edges

Face: MDO coating, for matt concrete finish.
Reverse: Dark brown phenolic film with imprinted text “WISA-Form MDO” as moisture barrier.
Edge sealing: Water resistant paint, light brown.

Panel size

2440 x 1220 mm
Size tolerance (length/width) ±1mm per metre
Squareness tolerance ±1mm per metre length of diagonal

Thicknesses and weight

​Nominal thickness (mm) ​Thickness (mm) ​Weight kg/m2 (MC 10 %)
  min - max
18 ​17.1 - 18.1 8.3
