WISA-Oil

WISA-Oil

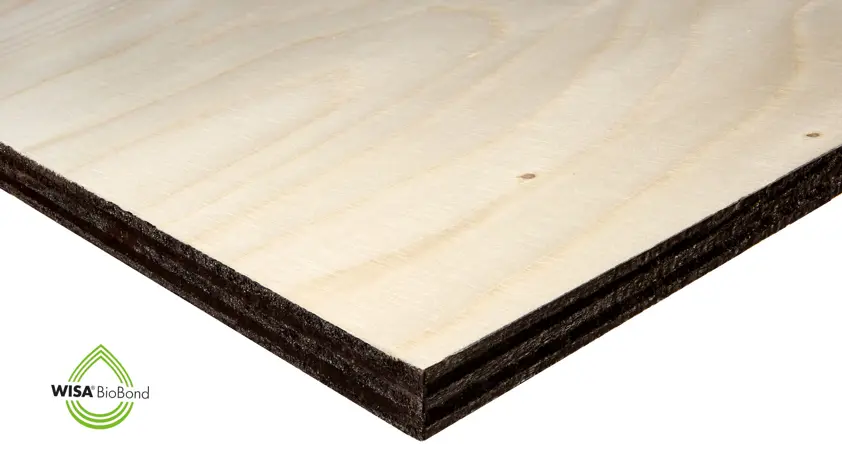

WISA-Oil is a pre-oiled and edge sealed concrete forming panel made of spruce. It is a simple and economical panel which is most suited for wall and floor castings with low visual requirements, especially for dead mold castings.

Properties

  • Lightweight

End-uses

  • Horizontal castings
  • Vertical castings


Bonding

Weather resistant glueing according to EN 314-2/class 3.

Surface and edges

Face and reverse: Oil treated with a release agent. Surface quality II/III.

Panel size

2440 x 1200 mm
2400 x 1200 mm
2500 x 1250 mm
Other sizes on special request.

Thicknesses and weights

​Nominal thickness ​Number of plies ​Min. thickness (mm) ​Weight (kg/m2) abt.
    min. - max.
​18 ​7 ​17.1 - 18.1 ​8.3
​21 ​7 ​20.0 - 20.9 ​9.7
