WISA-PremiumCut Clear

WISA-PremiumCut Clear

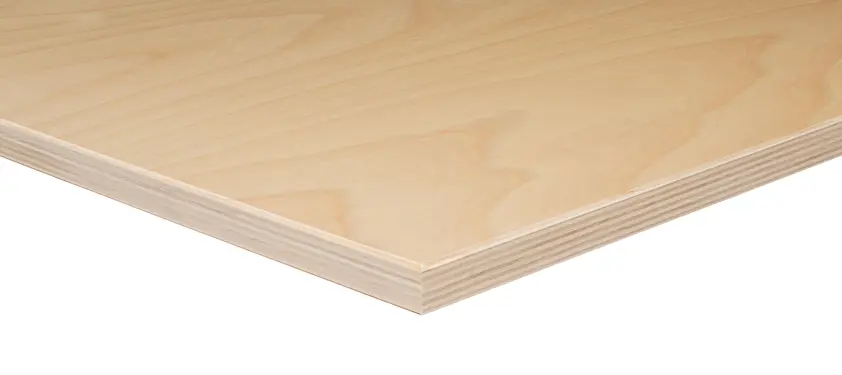

WISA-PremiumCut Clear is a high performance panel designed for the needs of the die-cutting industry. The excellent strength properties enable die-cutting of small boxes with excellent accuracy. The lacquered clear surface offers a great, smart looking base for gluing rubbers - being hygienic and easy to clean at the same time.

Properties

  • Long service life due to good durability
  • Homogeneous structure with minimised moisture movement and strict thickness tolerances enables accuracy in die-cutting
  • Wide size range and smart look
  • Possibility to customise according to your needs
  • Also available uncoated
  • Special lacquer to minimize moisture movement as well as reduce combustion gases during laser cutting

End-uses

  • Die-cutting Industry – flat die tools for
  • Long series
  • Small sized boxes with large amount of multiples per one die tool


Bonding

Cross-bonded interior gluing according to EN 314-2 (Plywood - Bonding) class 1 interior.

Surface and edges

Face veneer: Qualities S and BB.
Coating: Clear UV lacquer on both sides.
Other colours are available subejct to agreement. WISA-PremiumCut Clear is also available unlacquered.
Edge protection: Coated panels have edges sealed with lacquer.

Panel size

Standard sizes:

1220 x 1220 / 2440 mm
1250 x 2500 / 3000 mm
1500 x 1100 / 2150 / 2500 / 3000 mm
1525 x 1525 / 3050 mm
Other sizes are available subject to agreement

Constructions and thicknesses

Nominal thickness (mm) ​Min. thickness (mm) Weight (kg/m2)
(MC 10%)
  min. - max.
9 ​8.8 - 9.5 ​6.1
​12 11.5 - 12.5 ​8.2
​15 ​14.5 - 14.9 ​10.2
​18 ​17.6 - 18.0 ​12.2
​21 ​20.0 - 20.9 ​14.3

Thickness tolerances fulfi l the requirements of EN 315 (Plywood - tolerances for dimensions) and are in part tighter. Other thicknesses are available upon request.
