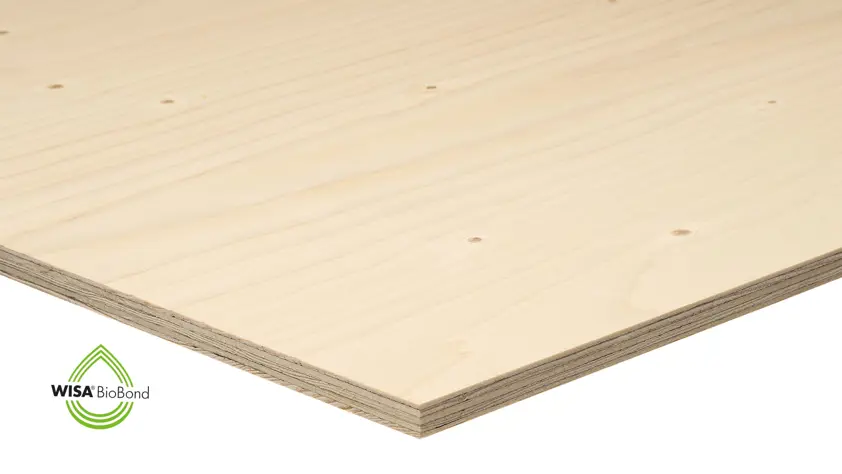

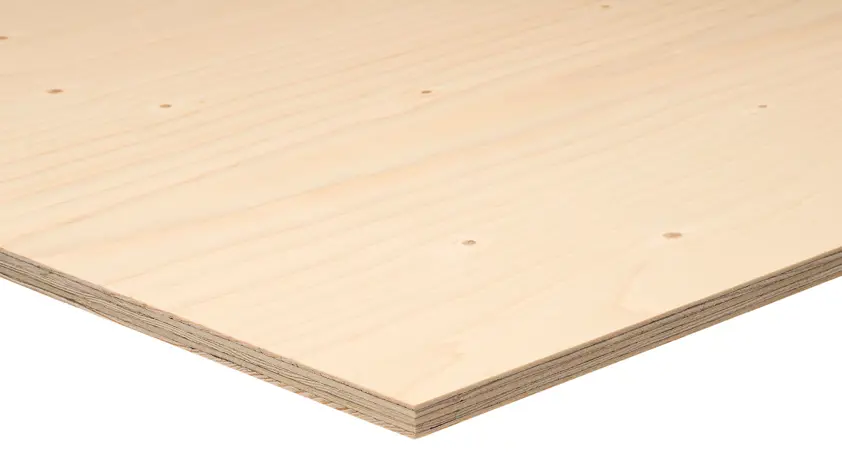

WISA-SpruceWR

WISA-SpruceWR is a lightweight water repellent plywood panel for structural uses. The wood-based water repellent coating agent protects the panel from the weather and adds efficiency to construction work. The wood-based agent creates a barrier slowing the rate of moisture penetration to the structure. At the same time, the surface allows the panel to breath and dry freely.

Properties

  • Water repellent
  • Lightweight
  • High quality
  • PEFC certified

End-uses

  • Construction
  • Temporary building


Bonding

Weather resistant glueing according to EN 314-2/class 3 Exterior. WISA-SpruceWR fulfills the requirements of EN 13986 E1 low formaldehyde emission class. On request deliveries according to TSCA Title IV / CARB Phase II / JAS Four Stars.

Surface and edges

Face veneer grades II and III (comply with standard EN 635-3).
Additional grade G (improved/solid grade II).

Edge machinings available on request.

Panel size

Standard sizes:    2400/2440/2500 x 1200/1220/1250 mm

Tongued and grooved 2400/2440 x 600/1200 mm

Other sizes on request.

Size tolerances        < 1000 mm                 ±1 mm
                                         1000 - 2000 mm     ±2 mm
                                         > 2000 mm                ±3 mm

Squareness tolerance  ±1 mm / 1000 mm

Thicknesses and weights

Nominal thickness
(mm)
Number of plies ​ ​Thickness (mm) ​ Weight (kg/m2) abt ​
    min - max.
12 ​5 ​11.5 - 12.5 ​5.7
15 ​5 ​14.3 - 15.3 7.0
18 ​7 ​17.1 - 18.1 ​8.1
21 ​7 ​20.0 - 20.9 ​9.4

Sizes and thicknesses relating to moisture content 8 - 12 %.
Thicknesses and tolerances fulfil the EN 315 requirements.
