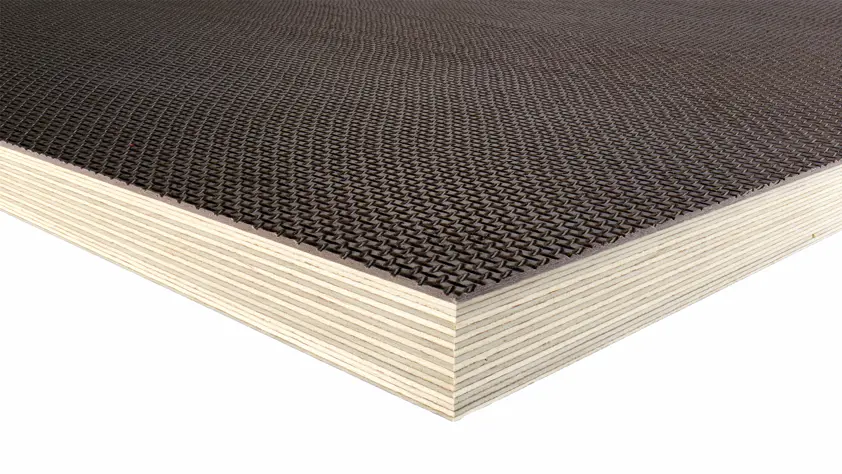

WISA-Truck Plus is a wood based laminated panel with a wire mesh type pattern intended for extra heavy use as truck and trailer flooring and building applications such as warehouses and loading platforms. The wear resistant coating prolongs the service life of vehicles.
WISA-Truck Plus
Properties
- Multilayer laminated flooring panel
- Excellent wear resistance
- Slip resistant surface
End-uses
- Heavy duty trailers
- Railway wagons
- Warehouses
- Loading platforms
Bonding
Phenolic resin cross-bonded weather resistant gluing according to EN 314-2/class 3.
Surface and edges
Face: Phenolic resin impregnated multilayer laminate with wire mesh pattern.
Colour: Dark brown.
Reverse: Phenolic moisture barrier.
Edge protection: Acryl-based paint.
Panel size
Maximum size 1220 x 2500 mm
Other sizes on request.
Size tolerances:
< 1000 mm ±1 mm
1000-2000 mm ±2 mm
2000-2500 mm ±3 mm
Squareness tolerance:
±1 mm / 1000 mm
Thicknesses and weights
| Nominal thickness (mm) | Number of plies | Thickness (mm) | Weight kg/m2 |
|---|---|---|---|
| 21 | 14 | 21.0 - 23.1 | 17.0 |
| 24 | 16 | 24.0 - 26.1 | 19.0 |
| 27 | 18 | 27.0 - 29.1 | 21.0 |
| 28 | 19 | 28.0 - 30.1 | 22.5 |
| 30 | 20 | 30.0 - 32.1 | 23.5 |
| 31 | 21 | 31.0 - 33.1 | 24.5 |
| 35 | 24 | 35.0 - 37.1 | 27.5 |
Moisture content 8-10 %.
